QRS Complex in ECG Explained | Duration, Normal Range, Types, and Abnormalities

The QRS complex in an ECG is the most prominent and easily visible part of an electrocardiogram tracing. It represents the electrical activity of the ventricles, specifically the depolarisation of the right and left ventricles, which leads to ventricular contraction and pumping of blood.

In simple terms, the QRS complex shows how efficiently the ventricles are activated and how well the heart is functioning at a muscular level.

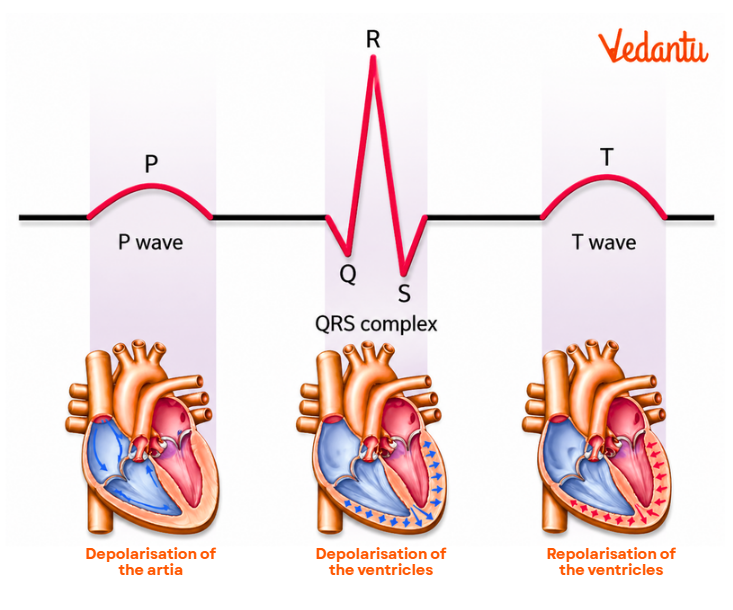

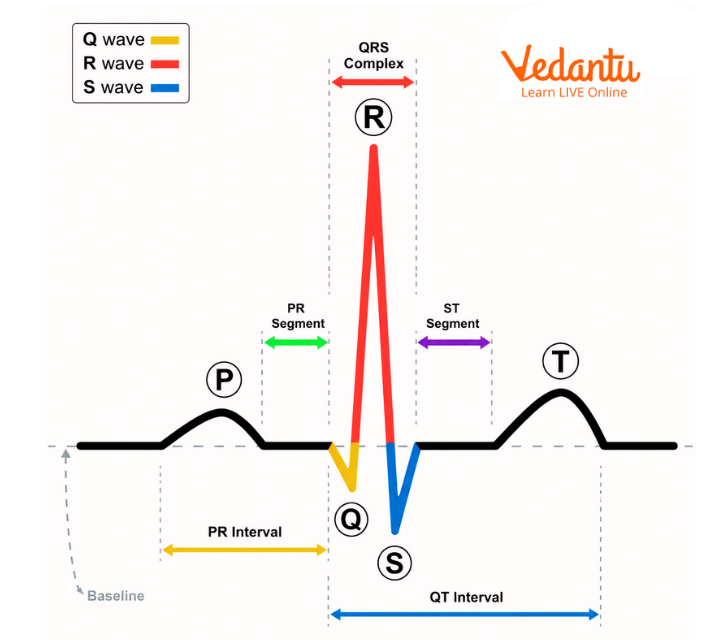

The QRS complex consists of three components:

• Q wave – first downward deflection after the P wave

• R wave – upward deflection

• S wave – downward deflection following the R wave

These waves occur rapidly and together represent a single electrical event in the heart.

Key Points:

• Signals originate from the conduction system (Bundle of His and Purkinje fibres)

• Both ventricles depolarise almost simultaneously

• This results in a strong contraction to pump blood to the lungs and body

• The QRS complex is larger than the P wave because the ventricles have more muscle mass

QRS Complex Duration and Normal Range

1. Normal QRS Complex Duration

• Typical duration: 0.08 to 0.10 seconds (80–100 ms)

• Slight variation may occur depending on age and physiology

• Children usually have slightly shorter durations

2. Measurement:

• Start: Beginning of Q wave (or end of PR interval)

• End: End of S wave

A normal duration indicates efficient conduction through the ventricles.

3. Narrow QRS Complex

A narrow QRS complex is one in which the duration is within the normal range (less than 100 ms).

4. Characteristics:

• Efficient and rapid conduction

• Normal functioning of the Bundle of His and the Purkinje fibres

• Seen in healthy individuals

5. Clinical Meaning:

• Indicates that electrical impulses are traveling through the normal conduction pathway

• Usually associated with normal sinus rhythm

Wide QRS Complex

A wide QRS complex occurs when the duration exceeds 0.10–0.12 seconds.

Causes:

• Bundle branch block

• Ventricular arrhythmias

• Electrolyte imbalance (e.g., hyperkalemia)

• Ventricular hypertrophy

• Delayed conduction in ventricles

Clinical Significance:

A widened QRS suggests that electrical impulses are not travelling normally, leading to delayed ventricular activation.

Components of the QRS Complex Explained

1. Q Wave

• Small negative deflection

• Represents septal depolarization

• Normal if small and short

• Deep or wide Q waves may indicate a previous myocardial infarction

2. R Wave

• First positive deflection

• Represents main ventricular depolarisation

• Its amplitude increases across chest leads

3. S Wave

• Negative deflection after the R wave

• Represents final phase of ventricular depolarisation

QRS Complex Formation (Electrical Basis)

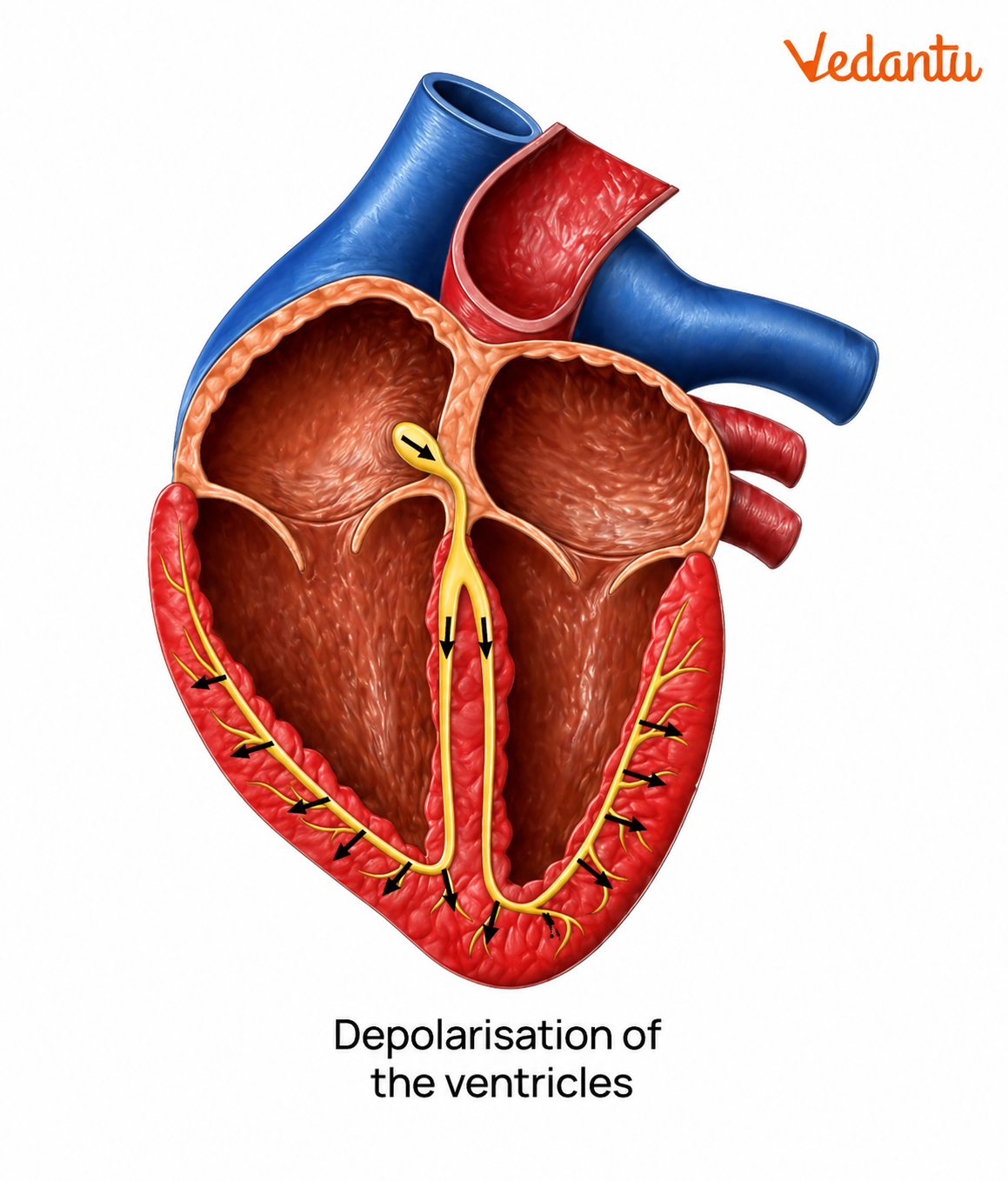

The QRS complex is formed due to rapid electrical conduction through:

• Bundle of His

• Right and Left Bundle Branches

• Purkinje fibers

This system ensures that both ventricles contract almost simultaneously, producing an efficient heartbeat.

QRS Complex Abnormalities

Changes in the QRS complex help diagnose several heart conditions.

1. Prolonged QRS Duration

• Indicates delayed conduction

• Seen in bundle branch blocks

2. Increased Amplitude

• Suggests ventricular hypertrophy

3. Pathological Q Waves

• Indicate past myocardial infarction

4. RSR′ Pattern

• Seen in bundle branch block

• Extra upward deflection (R′ wave)

5. Poor R Wave Progression

• May indicate anterior myocardial infarction

• Can also occur due to improper ECG placement

QRS Complex in ECG Interpretation

The QRS complex is one of the most important tools in ECG analysis.

It helps in diagnosing:

• Arrhythmias

• Ventricular hypertrophy

• Conduction defects

• Myocardial infarction

• Electrolyte disturbances

It is also used to determine the heart's electrical axis and to assess overall cardiac health.

QRS Complex Amplitude and Significance

Amplitude refers to the height of the QRS waves.

Normal Values:

• R and S waves vary across leads

• Excessively high amplitude may indicate hypertrophy

Clinical Use:

• Detects enlargement of heart chambers

• Helps identify cardiac stress conditions

R Wave Progression in QRS Complex

Normally:

• R wave increases from lead V1 to V5

• S wave decreases progressively

Abnormal Patterns:

• Poor progression → myocardial infarction

• Reverse progression → conduction defects

Importance of QRS Complex

The QRS complex plays a critical role in understanding heart function.

• Reflects ventricular activity

• Indicates conduction efficiency

• Helps detect serious heart diseases

• Essential in emergency cardiac diagnosis

Quick Summary Table

Insights from Experts?

The QRS complex on an ECG is a key indicator of how well the heart's ventricles are functioning. A normal QRS complex shows efficient electrical conduction, while abnormalities like a wide QRS complex or unusual patterns can signal serious cardiac conditions.

Understanding the QRS complex duration, structure, and abnormalities is essential for accurate ECG interpretation and early diagnosis of heart diseases.
